Schneider Electric NSYPLA1274TG
This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications The enclosure measures 1250mm in height, 750mm in width, and 420mm in depth and is made of polyester rei…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

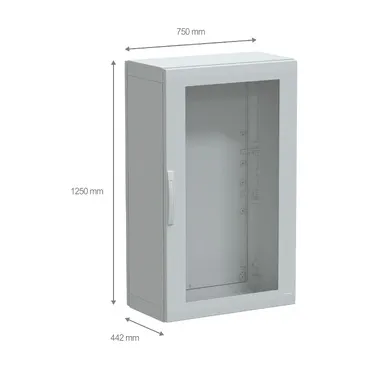

This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications The enclosure measures 1250mm in height, 750mm in width, and 420mm in depth and is made of polyester reinforced with fiberglass This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) color and comprises two side parts, one transparent front door, and one rear panel The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside The door features a four-point lock with a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT PLA |
| Enclosure type |
Multi-purpose |
| Product or component type |
Suitable enclosure |
| Version |
PLA |
| Nominal height |
1250 mm |
| Nominal width |
750 mm |
| Nominal depth |
420 mm |
| Enclosure mounting |
Floor-standing |
| Device composition |
1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type |
Sealed top and bottom part assembled with side parts |
| Door type |
Transparent front |
| Number of doors |
1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
4 points lock, 5 mm double-bar |
| Accessibility for operation |
Front, Rear |
| Removable parts |
Door by hinges, Rear panel by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL 508 A |
| NEMA degree of protection |
NEMA 3X, NEMA 3, NEMA 3R, NEMA 12, NEMA 1, NEMA 5, NEMA 3S, NEMA 13, NEMA 2 |
| Product certifications |
DNV Marine, Veritas, UL/cUL listed |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection |
IK08 conforming to IEC 62262 (glazed door) |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for storage |
-35…90 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
47.500 cm |
| Package 1 Width |
79.000 cm |
| Package 1 Length |
126.000 cm |
| Package 1 Weight |
47.000 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
143.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
107.000 kg |
| Warranty |
18 months |
