Schneider Electric NSYPLA1274G

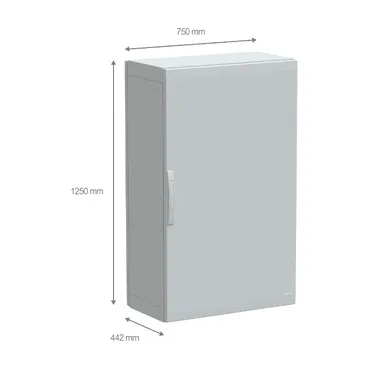

This PLA is a versatile, floor-standing enclosure that is suitable for various applications It has a nominal size of 1250mm in height, 750mm in width, and 420mm in depth The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one canopy The door is designed to open up to 120° on either side, allowing easy access to the equipment inside It is secured with a four-point lock and a 5mm double-bar insert The door and rear panel can be removed for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C, in accordance with the IEC 62208 standard It has an IK10 rating according to IEC 62262, indicating high resistance to impacts, and is rated IP65 (IEC 60529) for complete protection against dust and water It is UL/cUL listed, NEMA 3R, NEMA 3, NEMA 3S, NEMA 1, NEMA 13, NEMA 2, NEMA 12, NEMA 5, and NEMA 3X certified
