Schneider Electric NSYPLA1273TG

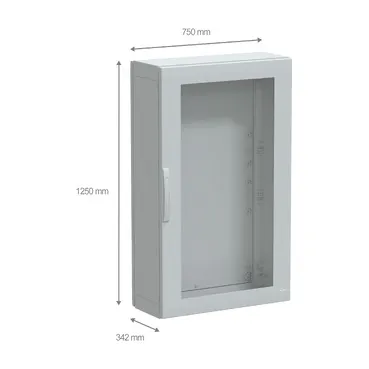

This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure suitable for a variety of applications It has a nominal height of 1250mm, a width of 750mm, and a depth of 320mm The enclosure is made of polyester reinforced with fiberglass, which provides it with durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) and consists of two side parts, one transparent front door, and one rear panel The door can be opened up to 120° from either the right or left side, providing easy access to the equipment inside The door is equipped with a four-point lock and a 5mm double-bar insert The door and rear panel can be removed for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impacts, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard, and has an IK08 rating (IEC 62262), providing resistance to impacts It is rated IP65 (IEC 60529), offering complete protection against dust and water Additionally, the enclosure has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions
