Schneider Electric NSYPLA1253TG

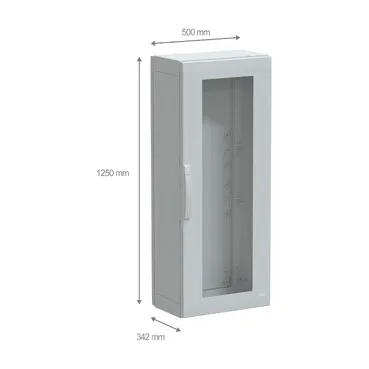

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely sealed, 1250x500x320mm, IP65, IK08
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1250 mm |
| Nominal width | 500 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Transparent front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Front, Rear |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | UL 508 A, IEC 62208 |
| NEMA degree of protection | NEMA 5, NEMA 3X, NEMA 13, NEMA 2, NEMA 1, NEMA 3S, NEMA 3, NEMA 12, NEMA 3R |
| Product certifications | Veritas, DNV Marine, UL/cUL listed |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK08 conforming to IEC 62262 (glazed door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 37.500 cm |
| Package 1 Width | 53.500 cm |
| Package 1 Length | 127.000 cm |
| Package 1 Weight | 31.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 144.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 166.000 kg |
| Warranty | 18 months |
