Schneider Electric NSYPLA1073TG

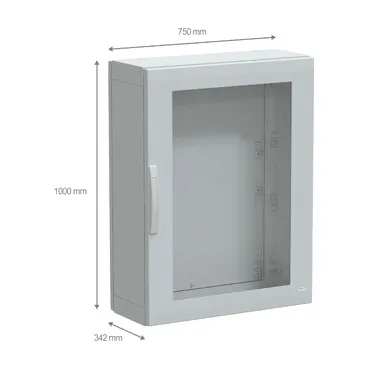

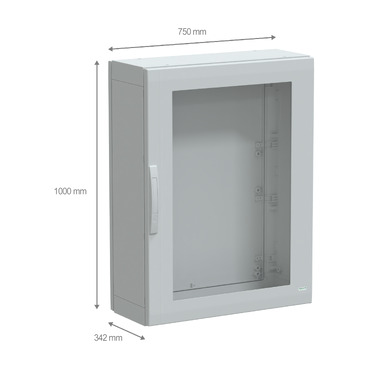

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely sealed, 1000x750x320mm, IP65, IK08
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT PLA |
| Enclosure type |
Multi-purpose |
| Product or component type |
Suitable enclosure |
| Version |
PLA |
| Nominal height |
1000 mm |
| Nominal width |
750 mm |
| Nominal depth |
320 mm |
| Enclosure mounting |
Floor-standing |
| Device composition |
1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type |
Sealed top and bottom part assembled with side parts |
| Door type |
Transparent front |
| Number of doors |
1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
4 points lock, 5 mm double-bar |
| Accessibility for operation |
Rear, Front |
| Removable parts |
Door by hinges, Rear panel by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
UL 508 A, IEC 62208 |
| NEMA degree of protection |
NEMA 3X, NEMA 3, NEMA 1, NEMA 3S, NEMA 12, NEMA 13, NEMA 3R, NEMA 2, NEMA 5 |
| Product certifications |
UL/cUL listed, Veritas, DNV Marine |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection |
IK08 conforming to IEC 62262 (glazed door) |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for storage |
-35…90 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
101.000 cm |
| Package 1 Width |
78.000 cm |
| Package 1 Length |
37.500 cm |
| Package 1 Weight |
29.600 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
3 |
| Package 2 Height |
116.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
102.000 kg |
| Warranty |
18 months |
