Schneider Electric NSYPLA1073G

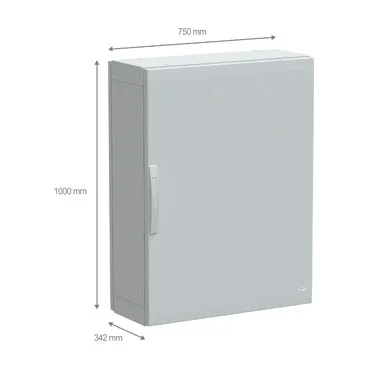

This PLA version of the Thalassa PLA is a versatile, floor-standing enclosure that is suitable for various applications It has a nominal height of 1000mm, a width of 750mm, and a depth of 320mm The en…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This PLA version of the Thalassa PLA is a versatile, floor-standing enclosure that is suitable for various applications It has a nominal height of 1000mm, a width of 750mm, and a depth of 320mm The enclosure is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) It consists of two side parts, one plain front door, and one rear panel The door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside The door has a four-point lock with a 5mm double-bar insert
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1000 mm |
| Nominal width | 750 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | UL 508 A, IEC 62208 |
| NEMA degree of protection | NEMA 5, NEMA 1, NEMA 2, NEMA 3X, NEMA 3, NEMA 3R, NEMA 12, NEMA 3S, NEMA 13 |
| Product certifications | Veritas, UL/cUL listed, DNV Marine |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 35.000 cm |
| Package 1 Width | 78.000 cm |
| Package 1 Length | 101.000 cm |
| Package 1 Weight | 27.800 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 115.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 95.600 kg |
| Warranty | 18 months |
