Schneider Electric NSYPFPLMG
Set of 4 polyamide wall mounting lugs for Thalassa PLM3025, PLM43, PLM54, PLM64, PLM75, PLM86 and PLM108. This accessory have multi-purpose application : top, bottom and rear mounting are possible. Pe…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

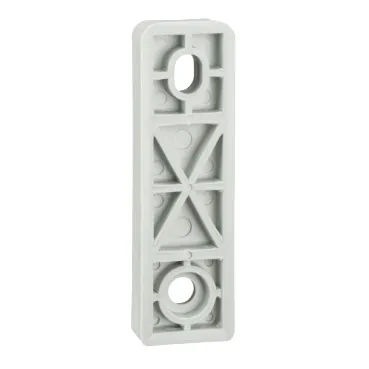

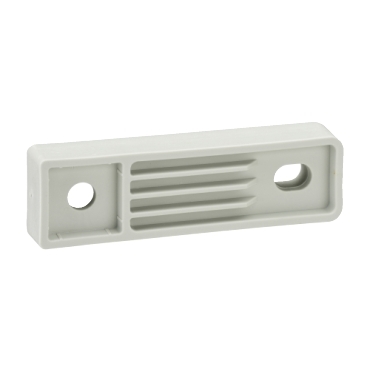

Set of 4 polyamide wall mounting lugs for Thalassa PLM3025, PLM43, PLM54, PLM64, PLM75, PLM86 and PLM108. This accessory have multi-purpose application : top, bottom and rear mounting are possible. Permanent permissible load is 200 kg in vertical position and 100 kg in horizontal position. The lugs are made from polyamide 6 with 30 % fiber glass. This product is qualified as a green premium, with minimal use of hazardous substances. The color is grey RAL 7035. Fixings are delivered with the lugs.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Fixing accessory |
| Product or component type | Wall fixing support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – |
| Mounting location | Top and bottom, on rear of the enclosure |
| Range compatibility | PanelSeT PLM |
| Device composition | Fixing screws, 4 lug |
| Material | Polyamide 6 with 30 % fibre glass |
| Colour | Grey (RAL 7035) |
| Fixing mode | Screwed – from the outside location |
| Permanent permissible load | 100 kg horizontal position, 200 kg vertical position |
| Height | 308 mm, 430 mm, 530 mm, 647 mm, 747 mm, 847 mm, 1056 mm |
| Width | 255 mm, 330 mm, 430 mm, 436 mm, 536 mm, 636 mm, 852 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 226.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 75 |
| Package 2 Height | 36.000 cm |
| Package 2 Width | 31.000 cm |
| Package 2 Length | 52.000 cm |
| Package 2 Weight | 17.000 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 900 |
| Package 3 Height | 85.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 220.000 kg |
| Warranty | 18 months |
