Schneider Electric NSYMR86
Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is800 x W is600 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws)….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

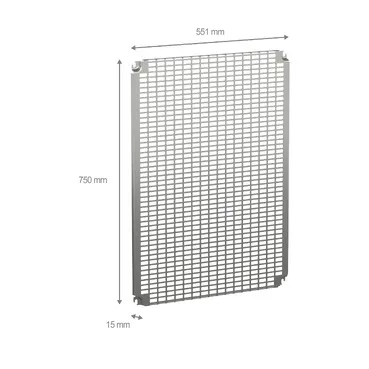

Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is800 x W is600 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 867 slots. Variant particularity is Installation in rear of enclosure.
Specification
| Lead time |
Usually Ships within 4 Weeks |
|---|---|
| Range |
PanelSeT |
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Mounting plate |
| Device application |
Multi-purpose |
| Enclosure nominal dimensions |
– H: 800 mm W: 600 mm, – H: 800 mm W: 1200 mm |
| Mounting location |
Step slide, Direct fixing on backstuds |
| Mounting plate description |
Telequick perforated |
| Range compatibility |
PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set |
Set of 1 |
| Material |
Steel |
| Surface finish |
Zinc coated |
| Fixing mode |
Screwed on backstuds – screw type M8, By fixing element |
| Height |
750 mm |
| Width |
551 mm |
| Depth |
15 mm |
| Thickness |
2 mm |
| Net weight |
3.16 kg |
| Number of slots |
867 |
| Variant particularity |
With enclosures H800 x W1200, Installation in rear of enclosure |
| Cut-out dimensions |
11 x 26 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.000 cm |
| Package 1 Width |
55.500 cm |
| Package 1 Length |
75.500 cm |
| Package 1 Weight |
3.180 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
126 |
| Package 2 Height |
90.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
429.000 kg |
| Warranty |
18 months |
