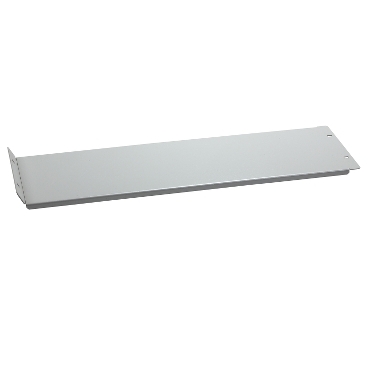

Schneider Electric NSYMPCH158
Hinged plain grey cover plate (RAL 7035) made from steel for Spacial SF and Spacial SM enclosures Mounted by screws on chassis coupling set The nominal width is 800mm, fixing centers width is 678mm an…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Hinged plain grey cover plate (RAL 7035) made from steel for Spacial SF and Spacial SM enclosures Mounted by screws on chassis coupling set The nominal width is 800mm, fixing centers width is 678mm and real width is 702mm The nominal height is 150mm and real height is 149,5mm The real depth is 12mm Suitable for enclosures of 800 width 150mm The kit is made up of fixing elements, 1 cover plate and hinges
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Enclosure accessory |
| Product or component type |
Cover plate |
| Anwendung |
Multi-purpose |
| Range compatibility |
PanelSeT SF, PanelSeT SM |
| Nominal dimensions of the housing |
– H: 150 mm W: 800 mm |
| Mounting location |
On chassis coupling set |
| Device composition |
Fixing elements, 1 cover plate, hinges |
| Quantity per set |
Set of 1 |
| Material |
Steel |
| Colour |
Grey (RAL 7035) |
| Surface finish |
Epoxy-polyester powder |
| Fixing mode |
By screws |
| Type of front plate |
Hinged plain |
| Height |
Nominal: 150 mm, Real: 149.5 mm |
| Width |
Nominal: 800 mm, Fixing centers: 678 mm, Real: 702 mm |
| Depth |
Real : 12 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.000 cm |
| Package 1 Width |
16.000 cm |
| Package 1 Length |
71.500 cm |
| Package 1 Weight |
1.980 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
20 |
| Package 2 Height |
29.000 cm |
| Package 2 Width |
37.500 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
39.600 kg |
| Warranty |
18 months |
