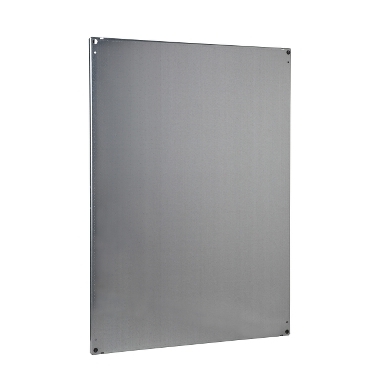

Schneider Electric NSYMP228
Spacial SF/SM standard mounting plate. 2199 x 800 mm. Equipped with a perimeter reinforcement rib. Max. Load 600 kg if positioned in the rear, 500 kg if positioned in the middle of Enclosure. Galvaniz…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spacial SF/SM standard mounting plate. 2199 x 800 mm. Equipped with a perimeter reinforcement rib. Max. Load 600 kg if positioned in the rear, 500 kg if positioned in the middle of Enclosure. Galvanized sheet steel. Fixing mode by brackets.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 2200 mm W: 800 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT SF, PanelSeT SM, PanelSeT SFX, PanelSeT SMX |
| Device composition | 1 mounting plate, 2 sliding shoes |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing brackets |
| Maximum load | 300 kg/m² |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |
| Height | Fixing centers: 2050 mm, Nominal: 2200 mm, Real: 2097 mm |
| Width | Nominal: 800 mm, Fixing centers: 650 mm, Real: 696 mm |
| Depth | 27 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 70.500 cm |
| Package 1 Length | 210.000 cm |
| Package 1 Weight | 34.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 70.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 210.000 cm |
| Package 2 Weight | 535.000 kg |
| Warranty | 18 months |
