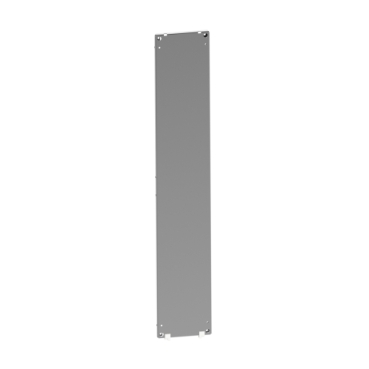

Schneider Electric NSYMP184
This mounting accessory is a multi-purpose mounting plate with dimensions H1697xW296xD27. It is compatible with the Spacial SF enclosure with dimensions H1800mmxW400mm (any depth). It is made of galva…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This mounting accessory is a multi-purpose mounting plate with dimensions H1697xW296xD27. It is compatible with the Spacial SF enclosure with dimensions H1800mmxW400mm (any depth). It is made of galvanized steel and can be mounted in the back of the enclosure or in an intermediate position. The depth is adjustable with a pitch of 25 mm, provided with plastic shoes for easier sliding. It holds loads up to 300 kg/m2, with a maximum of 600 kg if mounted in the back of the enclosure and 500 kg in the intermediate position. Compliant with RoHs and REACH directives.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 1800 mm W: 400 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Device composition | 1 mounting plate, 2 sliding shoes |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing brackets |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |
| Height | Fixing centers: 1650 mm, Nominal: 1800 mm, Real: 1697 mm |
| Width | Fixing centers: 250 mm, Nominal: 400 mm, Real: 296 mm |
| Depth | 27 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 31.000 cm |
| Package 1 Length | 171.000 cm |
| Package 1 Weight | 13.000 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 46.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 200.000 cm |
| Package 2 Weight | 291.000 kg |
| Warranty | 18 months |
