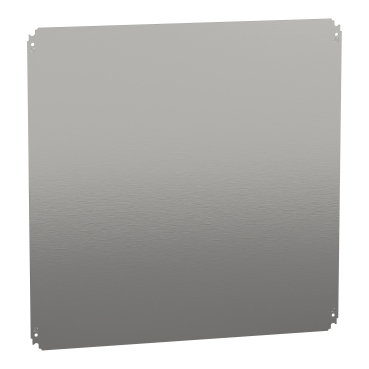

Schneider Electric NSYMM88
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is800 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 150…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is800 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel. Set of 1.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 800 mm W: 800 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load | 150 kg |

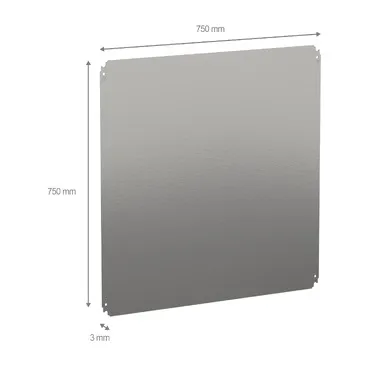

| Height | 750 mm |
| Width | 750 mm |
| Thickness | 2.5 mm |
| Net weight | 11.05 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.300 cm |
| Package 1 Width | 75.000 cm |
| Package 1 Length | 75.000 cm |
| Package 1 Weight | 11.086 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 33.500 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 344.200 kg |
| Warranty | 18 months |
