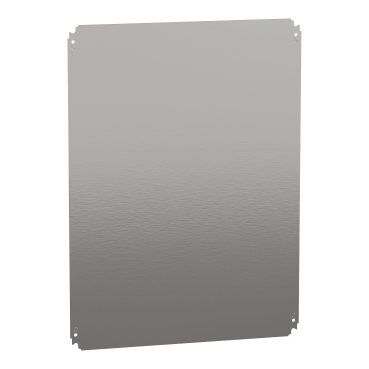

Schneider Electric NSYMM86
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is600 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 135…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is600 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel. Set of 1. Variant particularity is with enclosures H800 x W1200.
Specification
| Lead time |
Usually Ships within 4 Weeks |
|---|---|
| Range |
PanelSeT |
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Mounting plate |
| Device application |
Multi-purpose |
| Enclosure nominal dimensions |
– H: 800 mm W: 600 mm, H: 600 mm W: 800 mm |
| Mounting location |
Step slide, Direct fixing on backstuds |
| Mounting plate description |
Plain |
| Range compatibility |
PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set |
Set of 1 |
| Material |
Galvanised steel |
| Fixing mode |
Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load |
135 kg |
| Height |
750 mm |
| Width |
550 mm |
| Thickness |
2.5 mm |
| Net weight |
8.07 kg |
| Variant particularity |
With enclosures H800 x W1200 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.500 cm |
| Package 1 Width |
55.000 cm |
| Package 1 Length |
76.000 cm |
| Package 1 Weight |
8.000 kg |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
60 |
| Package 2 Height |
34.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
515.000 kg |
| Warranty |
18 months |
