Schneider Electric NSYMM76

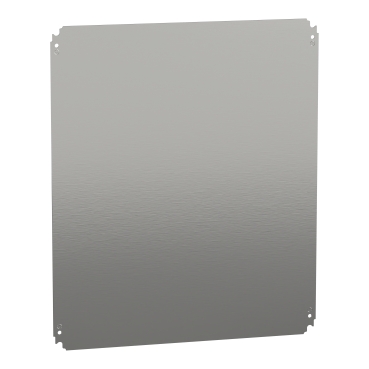

Plain mounting plate for Spacial (CRN, S3D, S3X, PLM). 699 x 600 mm. Permanent permissible load 135 kg. Screwed on backstuds, screw type M8. Galvanised sheet steel.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plain mounting plate for Spacial (CRN, S3D, S3X, PLM). 699 x 600 mm. Permanent permissible load 135 kg. Screwed on backstuds, screw type M8. Galvanised sheet steel.
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Mounting plate |
| Device application |
Multi-purpose |
| Enclosure nominal dimensions |
– H: 700 mm W: 600 mm |
| Mounting location |
Direct fixing on backstuds, Step slide |
| Mounting plate description |
Plain |
| Range compatibility |
PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set |
Set of 1 |
| Material |
Galvanised steel |
| Fixing mode |
Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load |
135 kg |
| Height |
650 mm |
| Width |
550 mm |
| Thickness |
1.8 mm |
| Net weight |
5.033 kg |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.300 cm |
| Package 1 Width |
65.500 cm |
| Package 1 Length |
56.000 cm |
| Package 1 Weight |
4.904 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
50 |
| Package 2 Height |
47.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
258.000 kg |
| Warranty |
18 months |
