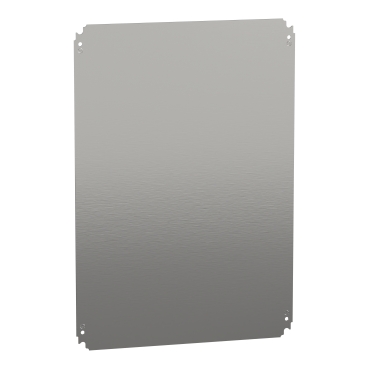

Schneider Electric NSYMM75
Plain mounting plate for Spacial S3DC, S3DCD. For enclosures H is700 x W is500 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg perm…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plain mounting plate for Spacial S3DC, S3DCD. For enclosures H is700 x W is500 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel. White color. Set of 1. Only US market application.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 700 mm W: 500 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load | 135 kg |
| Height | 650 mm |
| Width | 450 mm |
| Thickness | 1.8 mm |
| Net weight | 4.288 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.300 cm |
| Package 1 Width | 46.000 cm |
| Package 1 Length | 65.000 cm |
| Package 1 Weight | 4.300 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 37.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 337.000 kg |
| Warranty | 18 months |
