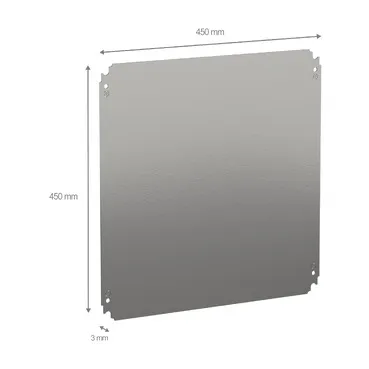

Schneider Electric NSYMM55
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is500 x W is500 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 90 K…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is500 x W is500 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 90 Kg permissible load. Galvanised steel. Set of 1.
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Mounting plate |
| Device application |
Multi-purpose |
| Enclosure nominal dimensions |
– H: 500 mm W: 500 mm |
| Mounting location |
Direct fixing on backstuds, Step slide |
| Mounting plate description |
Plain |
| Range compatibility |
PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set |
Set of 1 |
| Material |
Galvanised steel |
| Fixing mode |
Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load |
90 kg |
| Height |
450 mm |
| Width |
450 mm |
| Thickness |
1.8 mm |
| Net weight |
2.944 kg |
| Variant particularity |
Installation in enclosures with inverted dimensions |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.300 cm |
| Package 1 Width |
46.000 cm |
| Package 1 Length |
46.000 cm |
| Package 1 Weight |
3.000 kg |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
70 |
| Package 2 Height |
37.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
232.000 kg |
| Warranty |
18 months |
