Schneider Electric NSYMM54
Plain mounting plate for Spacial CRN, S3D and S3X, and Thalassa PLM. Multi purpose accessory of dimensions 450 x 350 mm, suitable for enclosures 500 x 400 mm (height x width). Made in galvanized steel…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

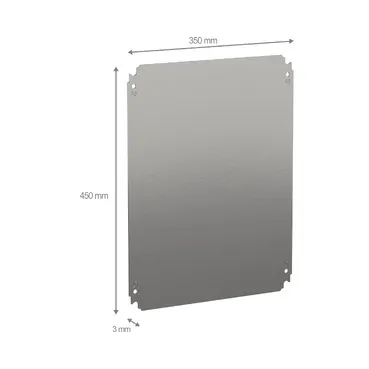

Plain mounting plate for Spacial CRN, S3D and S3X, and Thalassa PLM. Multi purpose accessory of dimensions 450 x 350 mm, suitable for enclosures 500 x 400 mm (height x width). Made in galvanized steel. It can withstand loads up to 250 kg/m2 in Spacial enclosures and 150 kg/m2 in Thalassa PLM. Directly fixed on backstuds of the enclosure or on step slides (to be ordered separatelly). It can be installed turned 90 degrees.
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Mounting plate |
| Device application |
Multi-purpose |
| Enclosure nominal dimensions |
– H: 500 mm W: 400 mm |
| Mounting location |
Direct fixing on backstuds, Step slide |
| Mounting plate description |
Plain |
| Range compatibility |
PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set |
Set of 1 |
| Material |
Galvanised steel |
| Fixing mode |
Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load |
90 kg |
| Height |
450 mm |
| Width |
350 mm |
| Thickness |
1.8 mm |
| Net weight |
2.27 kg |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.200 cm |
| Package 1 Width |
35.000 cm |
| Package 1 Length |
45.500 cm |
| Package 1 Weight |
2.300 kg |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
140 |
| Package 2 Height |
37.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
345.000 kg |
| Warranty |
18 months |
