Schneider Electric NSYMF64

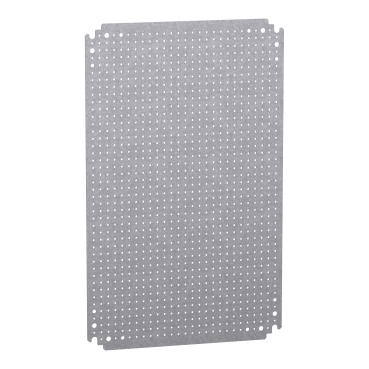

Microperforated mounting plate for Spacial CRN, S3D, S3X and Thalassa PLM. The dimensions are (H) 600 mm x (W) 400 mm. Dimensions are reversible : it can be installed in enclosure with inverted dimens…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Microperforated mounting plate for Spacial CRN, S3D, S3X and Thalassa PLM. The dimensions are (H) 600 mm x (W) 400 mm. Dimensions are reversible : it can be installed in enclosure with inverted dimensions. This mounting plate have 3,6 mm diameter holes with a 12,5 mm pitch which allow multi-purpose mounting accessory. It can be fixed using step slide mounting location or by direct fixing on backstuds (M8 screws). Made of galvanised steel, making it durable and resistant. The permanent permissible load is 90 kg. This product is qualified as a green premium, with minimal use of hazardous substances.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 600 mm W: 400 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Microperforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load | 90 kg |
| Height | 550 mm |
| Width | 365 mm |
| Depth | 125 mm |
| Thickness | 1.8 mm |
| Net weight | 2.92 kg |
| Variant particularity | Installation in enclosures with inverted dimensions |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.300 cm |
| Package 1 Width | 36.000 cm |
| Package 1 Length | 56.500 cm |
| Package 1 Weight | 2.900 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 350.400 kg |
| Warranty | 18 months |
