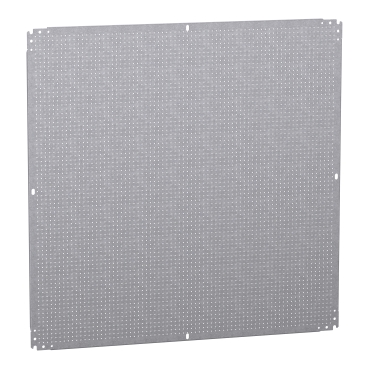

Schneider Electric NSYMF1010
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is1000 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is1000 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel.
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Mounting plate |
| Device application |
Multi-purpose |
| Enclosure nominal dimensions |
– H: 1000 mm W: 1000 mm |
| Mounting location |
Direct fixing on backstuds, Step slide |
| Mounting plate description |
Microperforated |
| Range compatibility |
PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set |
Set of 1 |
| Material |
Galvanised steel |
| Fixing mode |
Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load |
225.6 kg S3D, CRN, S3X enclosures, 135.4 kg PLM enclosure |
| Maximum load |
250 kg S3D, CRN, S3X enclosures, 150 kg PLM enclosure |
| Height |
950 mm |
| Width |
950 mm |
| Surface and useful surface |
90.3 dm² |
| Thickness |
2.5 mm |
| Net weight |
17.826 kg |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.000 cm |
| Package 1 Width |
95.000 cm |
| Package 1 Length |
95.000 cm |
| Package 1 Weight |
17.000 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
25 |
| Package 2 Height |
58.500 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
438.000 kg |
| Warranty |
18 months |
