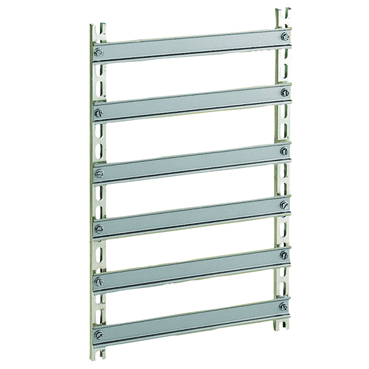

Schneider Electric NSYMD86
Set of 1 symmetrical DIN rails for equipment to be used in Spacial CRN, Spacial S3D, Spacial S3X and Thalassa PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal widt…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Set of 1 symmetrical DIN rails for equipment to be used in Spacial CRN, Spacial S3D, Spacial S3X and Thalassa PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal width is 600mm and real width is 550mm The real depth is 30mm The real height is 739,3mm and nominal height is 800mm
Specification
| Anwendung |
Multi-purpose |
|---|---|
| Range |
PanelSeT |
| Product or component type |
Chassis |
| Accessory / separate part category |
Mounting accessory |
| Type of rail |
Symmetrical DIN |
| Enclosure nominal dimensions |
– |
| Mounting support |
Step slide, Spacer, Direct fixing on backstuds |
| Range compatibility |
PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition |
Fixing elements, 6 DIN rail, 2 upright |
| Quantity per set |
Set of 1 |
| Material |
Uprights: aluminium, Rail: steel |
| Fixing mode |
Screwed on backstuds, By fixing element |
| Adjustment |
On step slides, type NSYSDCR…, pitch 12.5 mm |
| Height |
Real: 739.3 mm, Nominal: 800 mm |
| Width |
Nominal: 600 mm, Real: 550 mm |
| Depth |
Real : 30 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
4.000 cm |
| Package 1 Width |
12.000 cm |
| Package 1 Length |
73.500 cm |
| Package 1 Weight |
2.854 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
20 |
| Package 2 Height |
29.000 cm |
| Package 2 Width |
37.500 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
57.080 kg |
| Warranty |
18 months |
