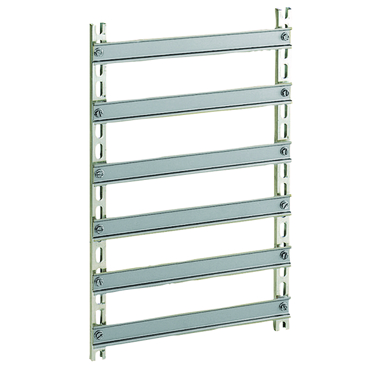

Schneider Electric NSYMD64
Set of 1 symmetrical DIN rails for equipment to be used in Spacial CRN, Spacial S3D, Spacial S3X and Thalassa PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal widt…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Set of 1 symmetrical DIN rails for equipment to be used in Spacial CRN, Spacial S3D, Spacial S3X and Thalassa PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal width is 400mm and real width is 350mm The real depth is 30mm The nominal height is 600mm and real height is 539,3mm
Specification
| Anwendung | Multi-purpose |
|---|---|
| Range | PanelSeT |
| Product or component type | Chassis |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | – |
| Mounting support | Spacer, Step slide, Direct fixing on backstuds |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition | Fixing elements, 6 DIN rail, 2 upright |
| Quantity per set | Set of 1 |
| Material | Uprights: aluminium, Rail: steel |
| Fixing mode | Screwed on backstuds, By fixing element |
| Adjustment | On step slides, type NSYSDCR…, pitch 12.5 mm |
| Height | Nominal: 600 mm, Real: 539.3 mm |
| Width | Nominal: 400 mm, Real: 350 mm |
| Depth | Real : 30 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 54.500 cm |
| Package 1 Length | 5.500 cm |
| Package 1 Weight | 1.220 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 150 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 202.250 kg |
| Warranty | 18 months |
