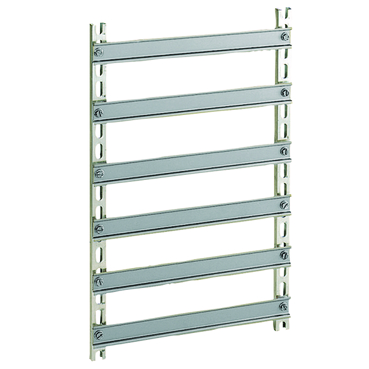

Schneider Electric NSYMD54
Set of 1 symmetrical DIN rails for equipment to be used in Spacial CRN, Spacial S3D, Spacial S3X and Thalassa PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal widt…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Set of 1 symmetrical DIN rails for equipment to be used in Spacial CRN, Spacial S3D, Spacial S3X and Thalassa PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal width is 400mm and real width is 350mm The real depth is 30mm The nominal height is 500mm and real height is 439,3mm
Specification
| Anwendung |
Multi-purpose |
|---|---|
| Range |
PanelSeT |
| Product or component type |
Chassis |
| Accessory / separate part category |
Mounting accessory |
| Type of rail |
Symmetrical DIN |
| Enclosure nominal dimensions |
– |
| Mounting support |
Direct fixing on backstuds, Step slide, Spacer |
| Range compatibility |
PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition |
Fixing elements, 2 upright, 4 DIN rail |
| Quantity per set |
Set of 1 |
| Material |
Uprights: aluminium, Rail: steel |
| Fixing mode |
Screwed on backstuds, By fixing element |
| Adjustment |
On step slides, type NSYSDCR…, pitch 12.5 mm |
| Height |
Nominal: 500 mm, Real: 439.3 mm |
| Width |
Nominal: 400 mm, Real: 350 mm |
| Depth |
Real : 30 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
4.000 cm |
| Package 1 Width |
5.000 cm |
| Package 1 Length |
45.000 cm |
| Package 1 Weight |
878.000 g |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
150 |
| Package 2 Height |
50.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
138.360 kg |
| Warranty |
18 months |
