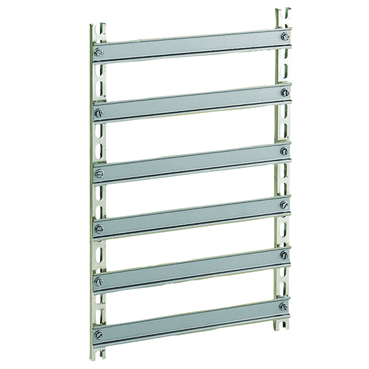

Schneider Electric NSYMD128
Symmetrical mounting chassis (7 rails) for enclosure dimensions H1200xW800mm
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Anwendung |
Multi-purpose |
|---|---|
| Range |
PanelSeT |
| Product or component type |
Chassis |
| Accessory / separate part category |
Mounting accessory |
| Type of rail |
Symmetrical DIN |
| Enclosure nominal dimensions |
– |
| Mounting support |
Spacer, Direct fixing on backstuds, Step slide |
| Range compatibility |
PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition |
Fixing elements, 2 upright, 7 DIN rail |
| Quantity per set |
Set of 1 |
| Material |
Uprights: aluminium, Rail: steel |
| Fixing mode |
Screwed on backstuds, By fixing element |
| Adjustment |
On step slides, type NSYSDCR…, pitch 12.5 mm |
| Height |
Real: 1152.4 mm, Nominal: 1200 mm |
| Width |
Nominal: 800 mm, Real: 750 mm |
| Depth |
Real : 30 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
4.500 cm |
| Package 1 Width |
10.000 cm |
| Package 1 Length |
115.500 cm |
| Package 1 Weight |
6.380 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
29.000 cm |
| Package 2 Width |
37.500 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
63.800 kg |
| Warranty |
18 months |
