Schneider Electric NSYHLCR60
Rails for heavy loads made from 3mm thick galvanised steel for use with Spacial SF enclosures with depth 600mm Can be fixed on structure of enclosure Directly fixed on the bottom frame of the enclosur…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

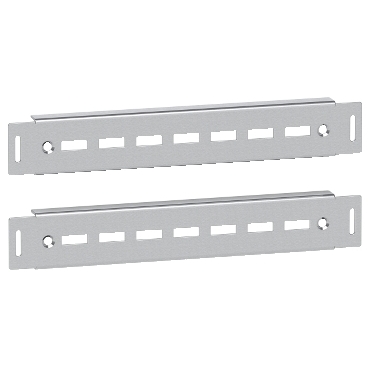

Rails for heavy loads made from 3mm thick galvanised steel for use with Spacial SF enclosures with depth 600mm Can be fixed on structure of enclosure Directly fixed on the bottom frame of the enclosure The fixing centers width is 550mm and nominal width is 600mm Laterally adjustable with a pitch of 25mm Maximum load is 500kg
Specification
| Range |
PanelSeT |
|---|---|
| Product specific application |
Heavy loading |
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Rails for heavy load |
| Application |
Multi-purpose |
| Nominal dimensions of the housing |
– D: 600 mm |
| Range compatibility |
PanelSeT PanelSeT SF |
| Mounting location |
On structure of enclosure |
| Mounting support |
Bottom frame |
| Device composition |
Fixing elements, 2 rails |
| Quantity per set |
Set of 1 |
| Material |
Galvanised steel |
| Fixing mode |
By fixing element – screw type M6 |
| Adjustment |
Adjustable with a pitch of 25 mm |
| Maximum load |
500 kg |
| Width |
Fixing centers: 550 mm, Nominal: 600 mm |
| Thickness |
3 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
4.000 cm |
| Package 1 Width |
13.000 cm |
| Package 1 Length |
59.000 cm |
| Package 1 Weight |
3.146 kg |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
40 |
| Package 2 Height |
41.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
150.500 kg |
| Coverage |
Core product |
| Warranty |
18 months |
