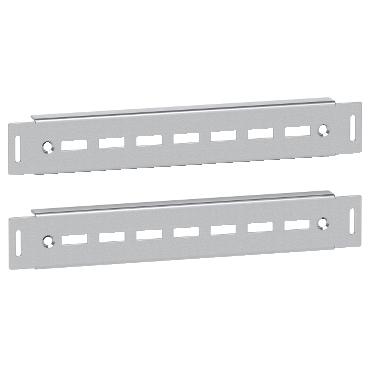

Schneider Electric NSYHLCR50
Rails for heavy loads made from 3mm thick galvanised steel for use with Spacial SF and Spacial SF 5G enclosures with depth 500mm Can be fixed on structure of enclosure Directly fixed on the bottom fra…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Rails for heavy loads made from 3mm thick galvanised steel for use with Spacial SF and Spacial SF 5G enclosures with depth 500mm Can be fixed on structure of enclosure Directly fixed on the bottom frame of the enclosure The fixing centers width is 450mm and nominal width is 500mm Laterally adjustable with a pitch of 25mm Maximum load is 525kg
Specification
| Range | PanelSeT |
|---|---|
| Product specific application | Heavy loading |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Rails for heavy load |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – D: 500 mm |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SF 5G |
| Mounting location | On structure of enclosure |
| Mounting support | Bottom frame, Heavy load kit |
| Device composition | Fixing elements, 2 rails |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element – screw type M6 |
| Adjustment | Adjustable with a pitch of 25 mm |
| Maximum load | 525 kg |
| Width | Fixing centers: 450 mm, Nominal: 500 mm |
| Thickness | 3 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 48.000 cm |
| Package 1 Weight | 2.600 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 52.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
