Schneider Electric NSYGB140

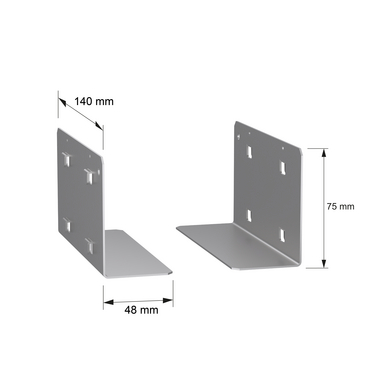

Fixed slide 19″ for using with Actassi VDA and Actassi VDS Actassi enclosures Compatible with Spacial SF-S, SF-E, VDM, PLA enclosures
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fixed slide 19″ for using with Actassi VDA and Actassi VDS Actassi enclosures Compatible with Spacial SF-S, SF-E, VDM, PLA enclosures
Specification
| Range of product | Actassi |
|---|---|
| Product or component type | Fixed slide |
| Device application | Electronic application, Multi-purpose |
| Quantity per set | Set of 1 |
| Range compatibility | Actassi VDA, Actassi VDS |
| Material | Steel |
| Surface finish | Zinc coated |
| Mounting support | 19″ rack, front or rear |
| Product compatibility | PanelSeT SF-S, PanelSeT SF-E, PanelSeT VDM, PanelSeT PLA |
| Device composition | Fixing elements, 2 rails |
| Fixing mode | By clips: 19″ uprights of rack |
| Number of rack unit | 2U |
| Permanent permissible load | 15 kg |
| Thickness | 1.2 mm |
| Number of units 19" | 2 |
| Height | 88.9 mm |
| Width | 140 mm |
| Depth | 44 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 15.000 cm |
| Package 1 Weight | 390.000 g |
| Warranty | 18 months |
