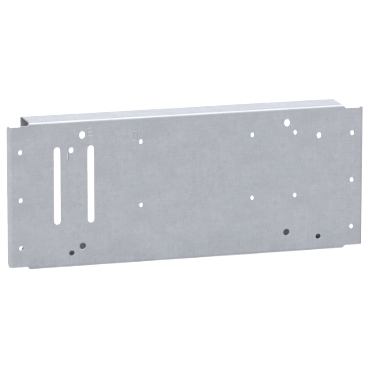

Schneider Electric NSYFXMNWT60FW
Withdrawable support Masterpact MTZ1 & NT, Fixed/Withdrawable suppport MTZ2 & NW, PanelSeT SFN, PanelSeT SF, W600
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Mounting plate |
| For enclosure nominal dimensions |
– W: 600 mm |
| Installed device |
Fixed NW08…32 for Masterpact (3P or 4P), withdrawable NW08…32 for Masterpact (3P or 4P), withdrawable NT06…16 for Masterpact (3P or 4P), fixed MTZ2 08…32 for Masterpact (3P or 4P), withdrawable MTZ2 08…32 for Masterpact (3P or 4P), withdrawable MTZ1 06…16 for Masterpact (3P or 4P) |
| Mounting location |
On universal cross railwidth90 mm) for NW08…32 device installation, On quick cross railwidth90 mm) for NW08…32 device installation, On universal cross railwidth65 mm) for NT06…16 device installation, On quick cross railwidth65 mm) for NT06…16 device installation, On universal cross railwidth90 mm) for MTZ2 08…32 device installation, On quick cross railwidth90 mm) for MTZ2 08…32 device installation, On universal cross railwidth65 mm) for MTZ1 06…16 device installation, On quick cross railwidth65 mm) for MTZ1 06…16 device installation |
| Mounting plate description |
Pre-punched |
| Range compatibility |
PanelSeT PanelSeT SF |
| Device composition |
1 mounting plate, fixing kit (screws, cage nuts…) |
| Quantity per set |
Set of 1 |
| Material |
Steel |
| Fixing mode |
By screws – screw type M6 – rail location |
| Height |
60 mm |
| Width |
571 mm |
| Depth |
230 mm |
| Net weight |
4.1 kg |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
58.000 cm |
| Package 1 Width |
24.500 cm |
| Package 1 Length |
7.500 cm |
| Package 1 Weight |
4.452 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
20 |
| Package 2 Height |
48.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
102.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
