Schneider Electric NSYEL166D6
Set of 10 earthing wires for Spacial enclosures Sheath and brass are made from green and yellow PVC (polyvinyl chloride) The terminal is made from copper alloy The length is 160mm The width is 10mm No…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

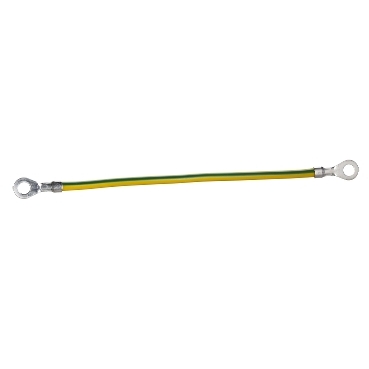

Set of 10 earthing wires for Spacial enclosures Sheath and brass are made from green and yellow PVC (polyvinyl chloride) The terminal is made from copper alloy The length is 160mm The width is 10mm Nominal cross section is 6 mm²
Specification
| Range |
PanelSeT |
|---|---|
| Anwendung |
Multi-purpose |
| Product or component type |
Earthing wire |
| Device composition |
1 lead |
| Quantity per set |
Set of 10 |
| Material |
PVC (polyvinyl chloride) green and yellow for sheath, Brass and copper alloy for terminal |
| Fixing mode |
Nut and washer – on earth connection location |
| Length |
160 mm |
| Width |
10 mm |
| Nominal cross section |
6 mm² |
| Diameter |
6.4 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
20.000 cm |
| Package 1 Width |
10.500 cm |
| Package 1 Length |
1.000 cm |
| Package 1 Weight |
13.000 g |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
9600 |
| Package 2 Height |
56.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
152.100 kg |
| Coverage |
Core product |
| Warranty |
18 months |
