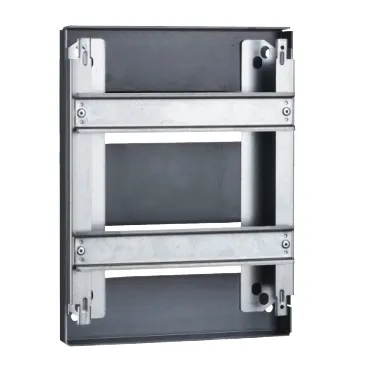

Schneider Electric NSYDLPLM18G
modular dist chassis 18 modules of 18mm w/ insulating prot.plate for PLM3025
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Application | Modular distribution application, Multi-purpose |
| Product or component type | Chassis |
| Device short name | DL |
| For enclosure nominal dimensions | – |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PLM, PanelSeT PHD |
| Device composition | 1 chassis structure, 1 front panel, 2 35 mm DIN rail |
| Additional information | IP2x not respected when chassis is mounted at 67 mm |
| Material | Front panel: self-extinguishing, Rails: galvanised steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element – on front with supports location |
| Number of horizontal rows | 2 |
| Total number of 18 mm modules | 18 |
| Type of front plate | Cut-out plate |
| Number of cut-out | 2 cut-outs |
| Height | 308 mm |
| Width | 255 mm |
| Depth | 160 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 22.500 cm |
| Package 1 Length | 30.500 cm |
| Package 1 Weight | 928.000 g |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 45.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 18.560 kg |
| Warranty | 18 months |
