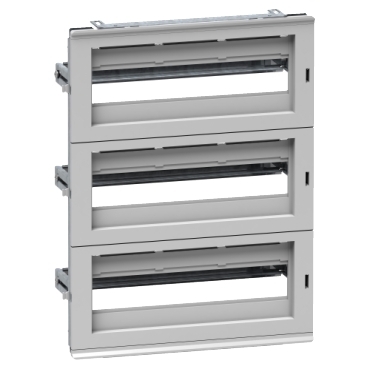

Schneider Electric NSYDLA48G
Modular distribution chassis 48 modules for NSYPLM54,NSYS3D54,NSYCRN54,NSYS3X54
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Application |
Multi-purpose, Modular distribution application |
| Product or component type |
Chassis |
| Device short name |
DLA |
| For enclosure nominal dimensions |
– |
| Mounting location |
Front of enclosure |
| Range compatibility |
PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Device composition |
1 chassis structure, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panels with 35 mm DIN rail |
| Quantity per set |
Set of 1 |
| Material |
Front panel: self-extinguishing insulating, Chassis structure and rails: steel |
| Colour |
Front panel: grey (RAL 7035) |
| Fixing mode |
By fixing element – on front with supports location |
| Adjustment |
In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows |
3 |
| Total number of 18 mm modules |
48 |
| Type of front plate |
Plain and cut-out plates |
| Number of cut-out |
3 cut-outs |
| Height |
480 mm |
| Width |
360 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
14.000 cm |
| Package 1 Width |
38.000 cm |
| Package 1 Length |
48.500 cm |
| Package 1 Weight |
4.310 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
48 |
| Package 2 Height |
124.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
218.500 kg |
| Warranty |
18 months |
