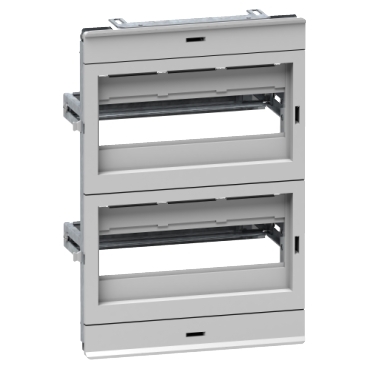

Schneider Electric NSYDLA24G
DLA chassis for Spacial S3D, Spacial CRN, Spacial S3X and Thalassa PLM enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 260mm The heig…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DLA chassis for Spacial S3D, Spacial CRN, Spacial S3X and Thalassa PLM enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 260mm The height is 380mm Number of 18mm modules is 24 (1 module = 2 steps = 18 mm) Number of horizontal rows is 2 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Application |
Modular distribution application, Multi-purpose |
| Product or component type |
Chassis |
| Device short name |
DLA |
| For enclosure nominal dimensions |
– |
| Mounting location |
Front of enclosure |
| Range compatibility |
PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Device composition |
1 chassis structure, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 front panels with 35 mm DIN rail |
| Quantity per set |
Set of 1 |
| Material |
Front panel: self-extinguishing insulating, Chassis structure and rails: steel |
| Colour |
Front panel: grey (RAL 7035) |
| Fixing mode |
By fixing element – on front with supports location |
| Adjustment |
In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows |
2 |
| Total number of 18 mm modules |
24 |
| Type of front plate |
Plain and cut-out plates |
| Number of cut-out |
2 cut-outs |
| Height |
380 mm |
| Width |
260 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
15.000 cm |
| Package 1 Width |
27.500 cm |
| Package 1 Length |
38.500 cm |
| Package 1 Weight |
2.828 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
50 |
| Package 2 Height |
102.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
148.000 kg |
| Warranty |
18 months |
