Schneider Electric NSYDCD248

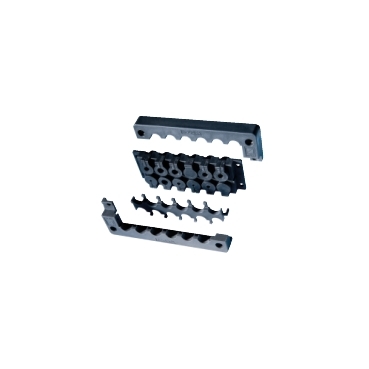

Cable entry system type Multi-CS dimensions 112 x 36 mm and 8 openings
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Product or component type |
Cable entry |
| Accessory / separate part category |
Cable management accessory |
| Application |
Multi-purpose |
| Mounting location |
Enclosure bottom |
| Cable entry |
6 grommets 2…12 mm, 2 grommets 12…24 mm |
| Quantity per set |
Set of 1 |
| Material |
Polypropylene |
| Height |
148 mm |
| Width |
58 mm |
| Depth |
15 mm |
| Net weight |
0.21 kg |
| Cut-out dimensions |
112 x 36 mm |
| Resistance to chemical agents |
Good resistance to weak acids and bases, Good resistance to mineral oils and greases, Good resistant to alcohols, Good resistance to fuels |
| Flame retardance |
V0 conforming to UL 94 |
| Ambient air temperature for operation |
-30…100 °C |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
12.000 cm |
| Package 1 Width |
6.000 cm |
| Package 1 Length |
20.500 cm |
| Package 1 Weight |
196.000 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
20.000 cm |
| Package 2 Width |
30.000 cm |
| Package 2 Length |
40.000 cm |
| Package 2 Weight |
2.278 kg |
| Unit Type of Package 3 |
PAM |
| Number of Units in Package 3 |
300 |
| Package 3 Height |
85.000 cm |
| Package 3 Width |
100.000 cm |
| Package 3 Length |
120.000 cm |
| Package 3 Weight |
81.900 kg |
| Warranty |
18 months |
