Schneider Electric NSYCRN86250P
Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

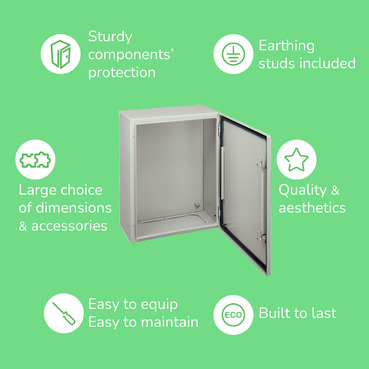

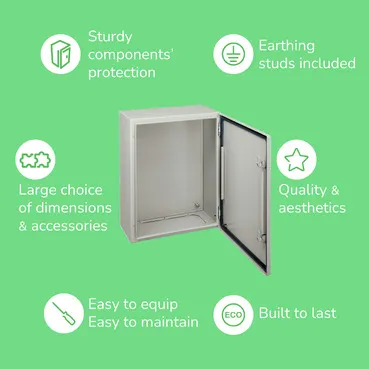

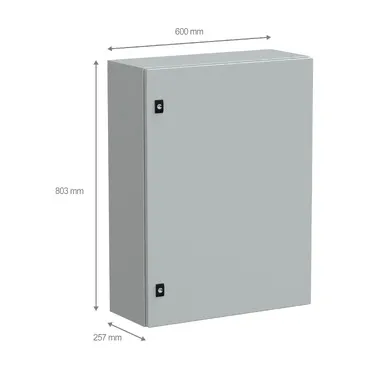

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 800mm, 600mm, and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door with a lock, and a galvanised steel mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible)
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT CRN |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
800 mm |
| Enclosure nominal width |
600 mm |
| Enclosure nominal depth |
250 mm |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate |
| Door type |
Plain |
| Mounting plate description |
Plain |
| Body type |
Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Type of gland plate |
Standard |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material |
Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish |
Enclosure: epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
cUL, UL, DNV-GL |
| Net weight |
28.024 kg |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
28.000 cm |
| Package 1 Width |
61.000 cm |
| Package 1 Length |
82.000 cm |
| Package 1 Weight |
26.900 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
8 |
| Package 2 Height |
136.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
229.500 kg |
| Coverage |
Core product |
| Warranty |
18 months |
