Schneider Electric NSYCRN64250
Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

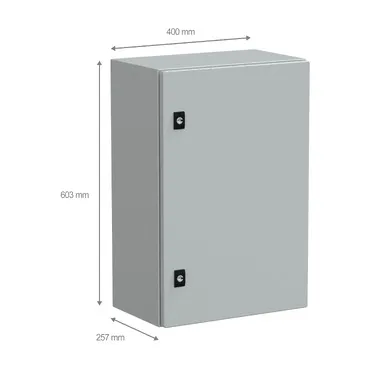

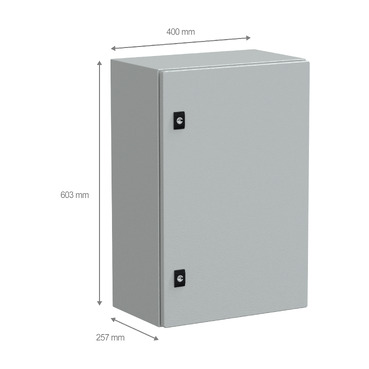

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 600mm, 400mm, and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The sides of the enclosure are made from a single folded section, while the back is welded with double profile forming a protected sealed area
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT CRN |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
600 mm |
| Enclosure nominal width |
400 mm |
| Enclosure nominal depth |
250 mm |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Body type |
Sides made from a single folded section, Back welded with double profile forming a protected sealed area |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Type of gland plate |
Standard |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Body: steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
UL, cUL, DNV-GL |
| Net weight |
10 kg |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
61.000 cm |
| Package 1 Width |
41.000 cm |
| Package 1 Length |
27.000 cm |
| Package 1 Weight |
10.634 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
27 |
| Package 2 Height |
198.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
300.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
