Schneider Electric NSYCRN33200

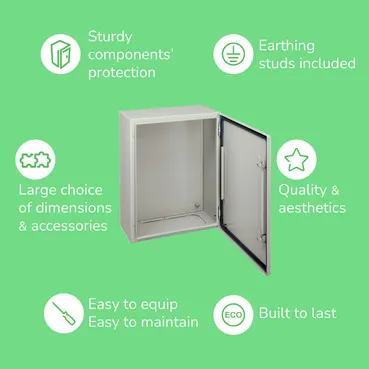

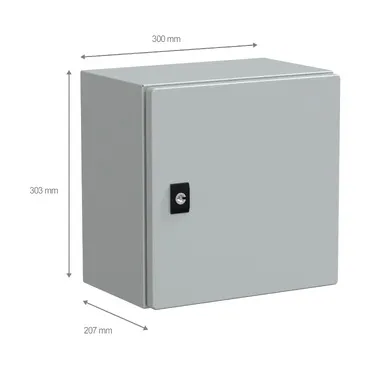

Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications, offering high impact protection with IK10 (IEC62262) and dust and water resistance with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 300mm, 300mm, and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 4,873kg This variant is designed with a back welded with double profile forming a protected sealed area and sides made from a single folded section The enclosure is accessible for operation from the front This compact enclosure is c.UL certified.
