Schneider Electric NSYCRN252150

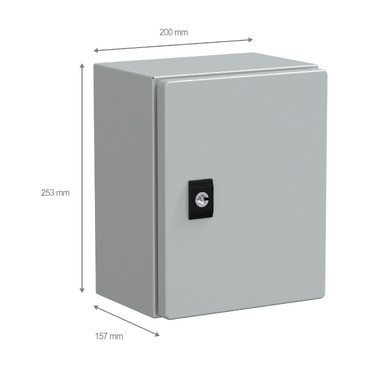

Spacial CRN steel wall-mounting enclosure for multi-purpose applications This enclosure is designed for use in harsh environments and is certified with UL, cUL, and DNV-GL It has an IK10 rating (IEC62262) and an IP66 rating (IEC60529) for high impact resistance and high resistance to dust and water The enclosure has a nominal height, width, and depth of 250mm, 200mm, and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 2,822kg It is built with a back welded double profile forming a protected sealed area and sides made from a single folded section, providing enhanced protection
