Schneider Electric NSYCRN126400

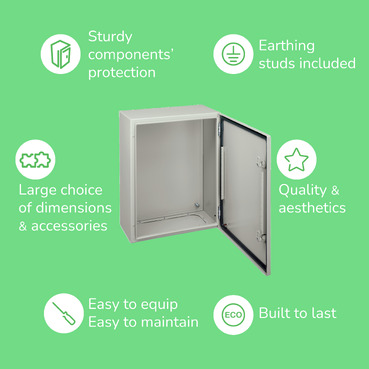

Plain steel door, PanelSeT CRN, without mounting plate, 1200x600x400mm, IP66, IK10, RAL7035
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT CRN |
| Application |
Multi-purpose |
| Category |
Compact enclosure |

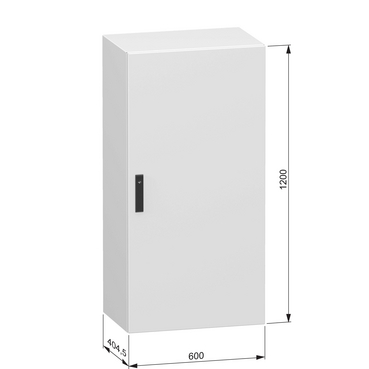

| Enclosure nominal height |
1200 mm |
| Enclosure nominal width |
600 mm |
| Enclosure nominal depth |
400 mm |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Body type |
Single piece body |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 points lock, 5 mm double-bar |
| Type of gland plate |
Standard |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Body: steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
cUL, UL |
| Net weight |
42 kg |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
42.000 cm |
| Package 1 Width |
62.500 cm |
| Package 1 Length |
122.500 cm |
| Package 1 Weight |
39.300 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
4 |
| Package 2 Height |
139.500 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
171.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
