Schneider Electric NSYCRN106300
TheSpacial CRN is a multi-purpose wall-mounting enclosure with a steel body, designed to provide superior protection against dust, water, and impact It has a nominal height, width, and depth of 1000mm…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

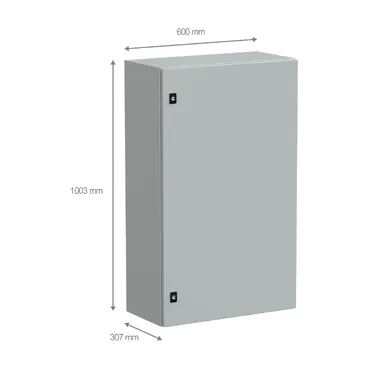

TheSpacial CRN is a multi-purpose wall-mounting enclosure with a steel body, designed to provide superior protection against dust, water, and impact It has a nominal height, width, and depth of 1000mm, 600mm, and 300mm, respectively The enclosure is grey in colour (RAL 7035) with an epoxy-polyester powder surface finish It has a plain door with a 3mm double-bar lock and hinges, allowing it to be opened up to 120° and the opening side is reversible The door and cable gland plate can be removed for maintenance purposes It is certified by UL, cUL, and DNV-GL and is compliant with IEC 62208, IK10 (IEC 62262), and IP66 (IEC 60529) The net weight of the enclosure is 28kg It features a back welded double profile and sides made from a single folded section The accessibility for operation is from the front Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish.
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT CRN |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
1000 mm |
| Enclosure nominal width |
600 mm |
| Enclosure nominal depth |
300 mm |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Body type |
Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Type of gland plate |
Standard |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Body: steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
UL, cUL, DNV-GL |
| Net weight |
28 kg |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
31.500 cm |
| Package 1 Width |
61.000 cm |
| Package 1 Length |
101.000 cm |
| Package 1 Weight |
28.000 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
9 |
| Package 2 Height |
175.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
263.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
