Schneider Electric NSYCRN106250P
Spacial CRN is a multi-purpose wall-mounting enclosure designed for harsh environments It is certified by UL, cUL, and DNV-GL and has an IK10 (IEC62262) rating and an IP66 rating (IEC60529) This enclo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

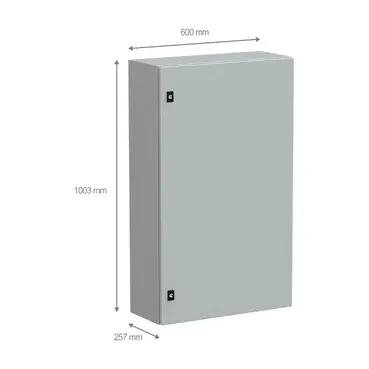

Spacial CRN is a multi-purpose wall-mounting enclosure designed for harsh environments It is certified by UL, cUL, and DNV-GL and has an IK10 (IEC62262) rating and an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 1000mm, 600mm, and 250mm, respectively The enclosure is constructed of steel with an epoxy-polyester powder surface finish and is grey-coloured (RAL7035) It consists of a body, a cable gland plate, a plain door with a 3mm double-bar lock, and a galvanised steel mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible)
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT CRN |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
1000 mm |
| Enclosure nominal width |
600 mm |
| Enclosure nominal depth |
250 mm |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate |
| Door type |
Plain |
| Mounting plate description |
Plain |
| Body type |
Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Type of gland plate |
Standard |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material |
Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish |
Enclosure: epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
cUL, UL, DNV-GL |
| Net weight |
36 kg |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
27.000 cm |
| Package 1 Width |
61.000 cm |
| Package 1 Length |
110.500 cm |
| Package 1 Weight |
33.000 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
8 |
| Package 2 Height |
136.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
276.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
