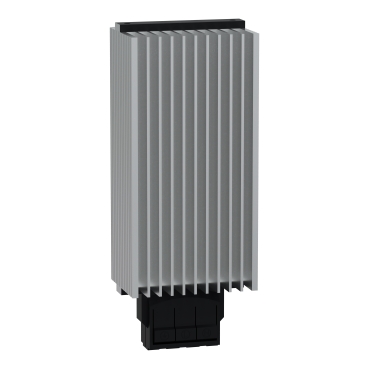

Schneider Electric NSYCR100WU1
Resistance heater 90W, 12,24 V DC for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product dimension (WxHxD) is 60 x…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Resistance heater 90W, 12,24 V DC for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product dimension (WxHxD) is 60 x 90 x 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Ingress protection rating IP20
Specification
| Range |
ClimaSys |
|---|---|
| Product name |
ClimaSys CR |
| Product or component type |
Resistance heater |
| Power range |
90 W |
| Input voltage |
12…24 V DC |
| Operating position |
Vertical |
| Ambient air temperature for operation |
-40…70 °C |
| IP degree of protection |
IP20 |
| Product certifications |
VDE, UL |
| Material |
Body: extruded aluminium |
| Condition of use |
Heaters must be installed with a thermal controller, Electrical protection is needed, Air sealed enclosure |
| Fixing mode |
By clips |
| Mounting support |
35 mm DIN rail |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
6.000 cm |
| Package 1 Width |
8.000 cm |
| Package 1 Length |
19.500 cm |
| Package 1 Weight |
476.000 g |
| Warranty |
18 months |
