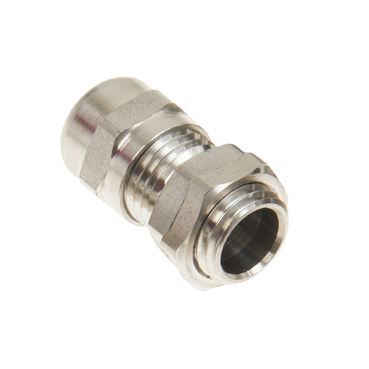

Schneider Electric NSYCGX20H
Set of cable gland + nut stainless steel M20 AISI316L, IP68, UL approved
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Product or component type |
Cable gland |
| Accessory / separate part category |
Cable management accessory |
| Range compatibility |
PanelSeT CRN, PanelSeT S3D, PanelSeT S3X |
| Mounting location |
Enclosure bottom, Enclosure top |
| Cable entry |
Cable gland M20 |
| Device composition |
1 cable gland, 1 lock nut, 1 seal |
| Quantity per set |
Set of 4 |
| Material |
Seal: CR (chloroprene), Body: stainless steel AISI 316L |
| Colour |
Grey |
| Fixing mode |
Screwed, By nut |
| Height |
36 mm |
| Net weight |
0.034 kg |
| Product certifications |
VDE |
| Flame retardance |
V2 conforming to UL 94 |
| Ambient air temperature for operation |
-20…100 °C permanent, -40…150 °C intermittent |
| IP degree of protection |
IP68 conforming to IEC 60529 5 bar, 30 min |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.500 cm |
| Package 1 Width |
2.500 cm |
| Package 1 Length |
3.500 cm |
| Package 1 Weight |
40.000 g |
| Unit Type of Package 2 |
BB1 |
| Number of Units in Package 2 |
4 |
| Package 2 Height |
2.000 cm |
| Package 2 Width |
5.000 cm |
| Package 2 Length |
15.000 cm |
| Package 2 Weight |
160.000 g |
| Unit Type of Package 3 |
CAR |
| Number of Units in Package 3 |
40 |
| Package 3 Height |
11.000 cm |
| Package 3 Width |
28.500 cm |
| Package 3 Length |
40.000 cm |
| Package 3 Weight |
1.988 kg |
| Warranty |
18 months |
