Schneider Electric NSYCAP125LZF
Sealing cover for ClimaSys CV EMC fan The product is made from grey painted steel (RAL 7035) The external width is 180mm The external height is 240mm The external depth is 60mm Cut-out dimensions is 1…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

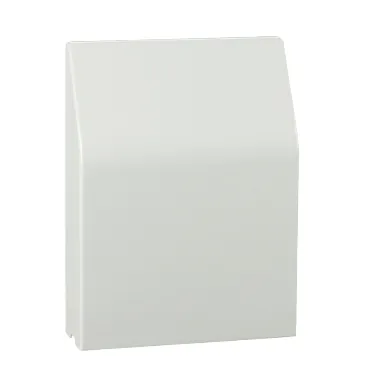

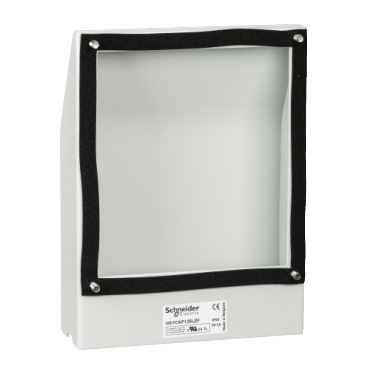

Sealing cover for ClimaSys CV EMC fan The product is made from grey painted steel (RAL 7035) The external width is 180mm The external height is 240mm The external depth is 60mm Cut-out dimensions is 125 x 125mm
Specification
| Range | ClimaSys |
|---|---|
| Product name | ClimaSys CA |
| Product or component type | Sealing cover |
| Accessory / separate part category | Thermal management accessory |
| Mounting location | On enclosure |
| Fixing mode | By screws |
| Range compatibility | ClimaSys ClimaSys CV EMC fan |
| Device composition | 1 cover, 1 filter |
| Material | Painted steel |
| Colour | Grey (RAL 7035) |
| Cut-out dimensions | 125 x 125 mm |
| Height | External: 240 mm |
| Width | External: 180 mm |
| Depth | External : 60 mm |
| Certification | CSA |
| IP degree of protection | IP55 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 28.000 cm |
| Package 1 Weight | 1.450 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 160 |
| Package 2 Height | 125.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 252.000 kg |
| Warranty | 18 months |
