Schneider Electric NSYCAG19LP

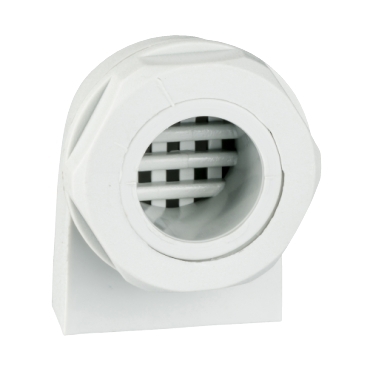

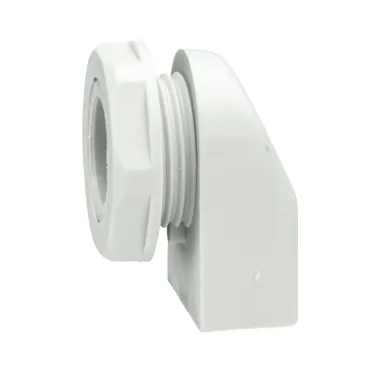

Plastic ventilation louvre 23,5 x 30mm made from polyamide 6 for Thalassa PLS, Thalassa PLM and Thalassa TBS enclosures The kit is made of 2 plastic louvres The external width is 23,5mm Ingress protec…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plastic ventilation louvre 23,5 x 30mm made from polyamide 6 for Thalassa PLS, Thalassa PLM and Thalassa TBS enclosures The kit is made of 2 plastic louvres The external width is 23,5mm Ingress protection rating (according to IEC 60529) is IP45 Fixing by screws Mounting position is vertical Cut-out dimensions is 19mm
Specification
| Range | ClimaSys |
|---|---|
| Product | ClimaSys CA |
| Range compatibility | Thalassa Thalassa PLS, Thalassa Thalassa PLM, Thalassa Thalassa TBS |
| Product or component type | Plastic ventilation louvre |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| Mounting position | Vertical |
| Fixing mode | By screws |
| Device composition | 2 plastic louvre |
| Material | Polyamide 6 |
| Colour | Grey (RAL 7035) |
| Cut-out dimensions | 19 mm |
| Height | External: 30 mm |
| Width | External: 23.5 mm |
| Depth | External : 22 mm |
| IP degree of protection | IP45 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.000 cm |
| Package 1 Width | 4.000 cm |
| Package 1 Length | 4.000 cm |
| Package 1 Weight | 7.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 2.000 cm |
| Package 2 Width | 8.000 cm |
| Package 2 Length | 8.000 cm |
| Package 2 Weight | 14.000 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 19.000 cm |
| Package 3 Width | 24.000 cm |
| Package 3 Length | 35.000 cm |
| Package 3 Weight | 2.100 kg |
| Warranty | 18 months |
