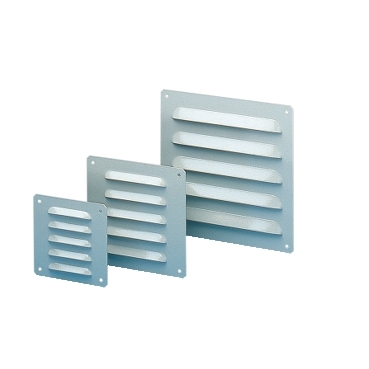

Schneider Electric NSYCAG170X190LM
Metal louvre plate 220 x 220mm made from steel for enclosures The kit is made of 1 metal louvre The external width is 220mm Ingress protection rating (according to IEC 60529) is IP23 Fixing by screws…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Metal louvre plate 220 x 220mm made from steel for enclosures The kit is made of 1 metal louvre The external width is 220mm Ingress protection rating (according to IEC 60529) is IP23 Fixing by screws on sides of enclosure Cut-out dimensions is 170 x 190mm Painted in grey (RAL 7035)
Specification
| Range | ClimaSys |
|---|---|
| Product | ClimaSys CA |
| Product or component type | Metal louvre plate |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| Mounting location | Sides of enclosure |
| Fixing mode | By screws |
| Device composition | 1 metal louvre |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Cut-out dimensions | 170 x 190 mm |
| Height | External: 220 mm |
| Width | External: 220 mm |
| IP degree of protection | IP23 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 22.000 cm |
| Package 1 Length | 22.000 cm |
| Package 1 Weight | 617.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 30.000 cm |
| Package 2 Weight | 10.040 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 720 |
| Package 3 Height | 122.500 cm |
| Package 3 Width | 110.500 cm |
| Package 3 Length | 123.000 cm |
| Package 3 Weight | 493.920 kg |
| Warranty | 18 months |
