Schneider Electric NSYAS600
Bar support used for Prisma and multi-purpose application in Spacial SF, Linergy LGYE, Linergy BS, Spacial SFP and Prisma PH enclosures The bar support fixing centers width is 550mm and nominal width…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

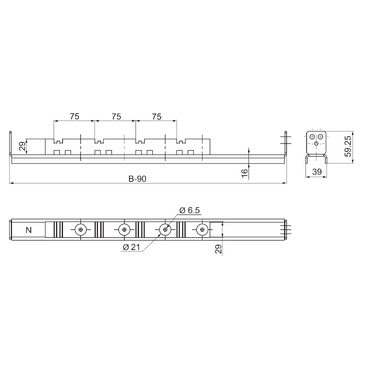

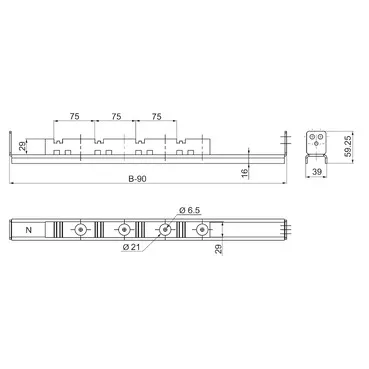

Bar support used for Prisma and multi-purpose application in Spacial SF, Linergy LGYE, Linergy BS, Spacial SFP and Prisma PH enclosures The bar support fixing centers width is 550mm and nominal width is 600mm The height is 66mm The depth is 39mm Busbar distance is 75mm
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Support accessory |
| Product or component type |
Bar support |
| Anwendung |
Prisma application, Multi-purpose |
| Enclosure nominal dimensions |
– |
| Mounting location |
Bottom |
| Busbar position |
Vertical |
| Range compatibility |
PanelSeT PanelSeT SF, Linergy Linergy LGYE, Linergy Linergy BS, Prisma Prisma PH |
| Cubicle-device connection |
Linergy LGYE lateral busbar, Linergy BS lateral busbar |
| Device composition |
Fixing elements, 1 insulating bar support, 1 metal support |
| Quantity per set |
Set of 1 |
| Material |
Bar support: plastic, Metal support: steel |
| Fixing mode |
By fixing element – bottom frame of enclosure location |
| Height |
66 mm |
| Width |
Fixing centers: 550 mm, Nominal: 600 mm |
| Depth |
39 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5.000 cm |
| Package 1 Width |
8.000 cm |
| Package 1 Length |
60.000 cm |
| Package 1 Weight |
1.342 kg |
| Coverage |
Core product |
| Warranty |
18 months |
