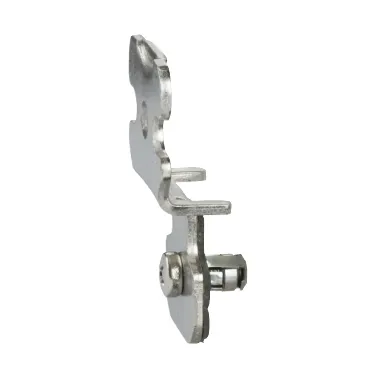

Schneider Electric NSYAEFPFSBX
Wall fixing lugs for Spacial S3D. Made in stainless steel 304L. This set of 4 brackets is supplied with fixing screws and pre mounted sealing gasket. It is supplied with fixing screws and pre mounted…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Wall fixing lugs for Spacial S3D. Made in stainless steel 304L. This set of 4 brackets is supplied with fixing screws and pre mounted sealing gasket. It is supplied with fixing screws and pre mounted sealing gaskets. To be mounted at the rear of the enclosure, in horizontal or vertical position. Made of stainless steel 304.
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Fixing accessory |
| Product or component type |
Wall fixing support |
| Device application |
Multi-purpose |
| Enclosure nominal dimensions |
– |
| Mounting location |
Rear of enclosure |
| Installation accessory type |
Horizontal or vertical position |
| Range compatibility |
PanelSeT SBX |
| Device composition |
Fixing screws, 4 lug, 4 pre-mounted sealing gasket |
| Quantity per set |
Set of 4 |
| Material |
Stainless steel 304 |
| Permanent permissible load |
70 kg |
| Height |
Real: 74 mm |
| Width |
Real: 42 mm |
| Depth |
Wall-enclosure separation : 12 mm |
| Net weight |
0.267 kg |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
4.000 cm |
| Package 1 Width |
7.500 cm |
| Package 1 Length |
15.500 cm |
| Package 1 Weight |
288.000 g |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
960 |
| Package 2 Height |
106.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
302.000 kg |
| Warranty |
18 months |
