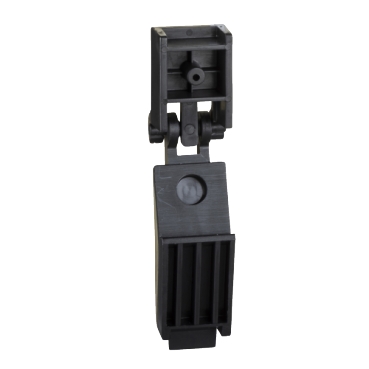

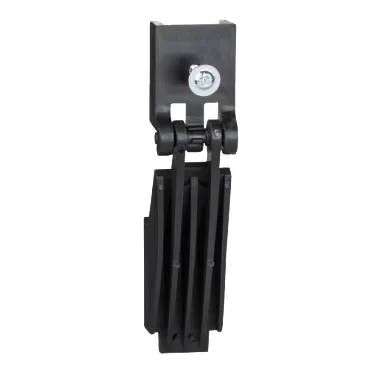

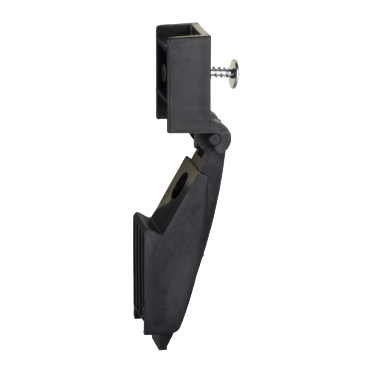

Schneider Electric NSYAEDRS3DPA6
Door retainer system for PanelSeT S3D encl., Cannot be mounted on encl. H>400
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Product or component type |
Door retainer |
| Application |
Multi-purpose |
| Nominal dimensions of the housing |
– |
| Mounting location |
On door reinforcement frame |
| Range compatibility |
PanelSeT S3D enclosure, PanelSeT cannot be installed on 19" mounting plates, PanelSeT CRNG version, PanelSeT enclosures with a height of less than 400 mm |
| Device composition |
1 x retainer |
| Material |
Polyamide 6 |
| Colour |
Black |
| Fixing mode |
Clipped – on door reinforcement frame location |
| Adjustment |
At the required height for on door reinforcement frame |
| Operating angle |
120 ° |
| Opening mechanism |
Holding system |
| Net weight |
0.013 kg |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.000 cm |
| Package 1 Width |
8.000 cm |
| Package 1 Length |
10.000 cm |
| Package 1 Weight |
11.000 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
300 |
| Package 2 Height |
20.000 cm |
| Package 2 Width |
30.000 cm |
| Package 2 Length |
40.000 cm |
| Package 2 Weight |
3.906 kg |
| Warranty |
18 months |
