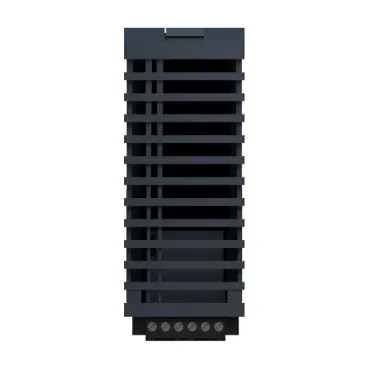

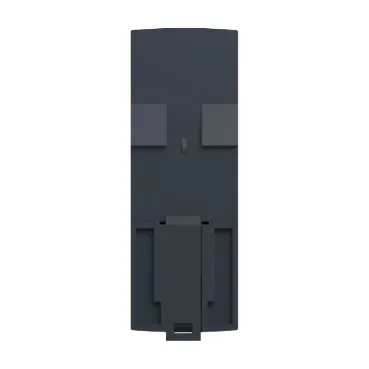

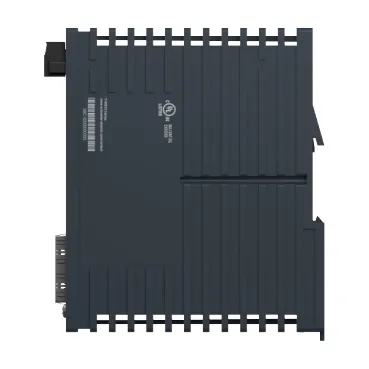

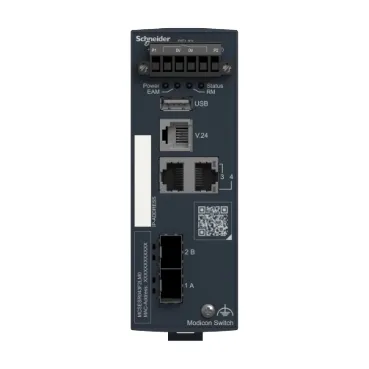

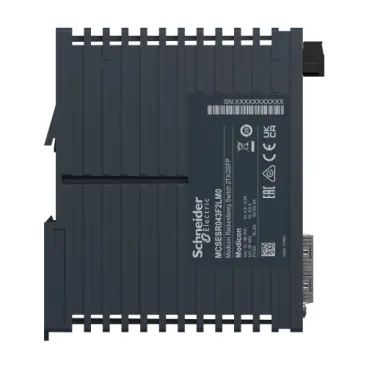

Schneider Electric MCSESR043F2LM0
Redundancy Switch, Modicon Networking, 2 ports for copper, 2 SFP ports
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range of product |
Modicon Networking |
|---|---|
| Product or component type |
Ethernet TCP/IP managed switch |
| Communication port protocol |
Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP |
| Port Ethernet |
10/100BASE-TX – 2 port(s) copper cable, 100 SFP – 2 port(s) |
| Maximum number of switches in cascade |
Unlimited |
| Cybersecurity |
IP-based port security, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging |
| Integrated connection type |
Shielded RJ45 copper cable, SFP port |
| Transmission support medium |
Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices |
100 m copper cable |
| Ethernet service |
Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication service |
TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time |
Signal contact, Self test, MAC notification |
| Redundancy |
RSTP, Link aggregation, Link backup, MRP, PRP |
| [Us] rated supply voltage |
12…48 V, 24 V |
| Supply voltage limits |
9.6…60 V DC SELV, 18…30 V AC SELV |
| Power consumption in W |
9 W |
| Electrical connection |
Removable connector 6 ways power supply |
| Mounting support |
35 mm symmetrical DIN rail |
| Marking |
CE, CULus, RCM |
| Function available |
System information, Alarms (Traps) |
| Local signalling |
1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for ring manager, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output |
1 voltfree contact 1000 mA |
| Alarm function |
Power supply fault, Data link status, Redundancy ring fault, Switch fault, Temperature threshold, Incorrect configuration, External memory removed |
| Ethernet cabling system |
TF switches |
| Width |
46 mm |
| Height |
130 mm |
| Depth |
105 mm |
| Net weight |
0.291 kg |
| Ambient air temperature for operation |
0…60 °C |
| Relative humidity |
10…95 % non-condensing |
| IP degree of protection |
IP20 |
| Directives |
2014/35/EU – low voltage directive, 2014/30/EU – electromagnetic compatibility |
| Standards |
UL 61010-2-201, EN/IEC 61131-2 |
| Product certifications |
CE, UL, RCM, EAC, UKCA |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
6.000 cm |
| Package 1 Width |
16.200 cm |
| Package 1 Length |
24.000 cm |
| Package 1 Weight |
435.000 g |
| Unit Type of Package 2 |
S04 |
| Number of Units in Package 2 |
20 |
| Package 2 Height |
30.000 cm |
| Package 2 Width |
40.000 cm |
| Package 2 Length |
60.000 cm |
| Package 2 Weight |
9.625 kg |
