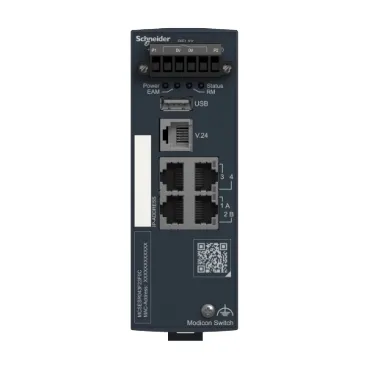

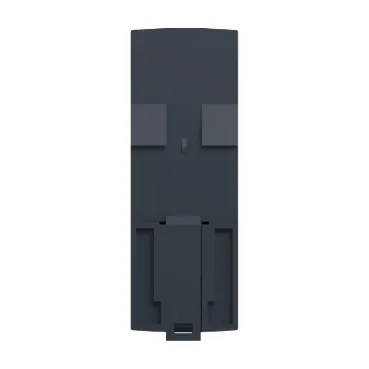

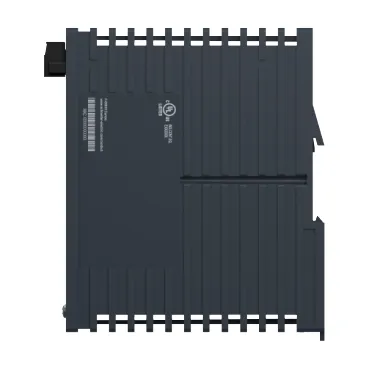

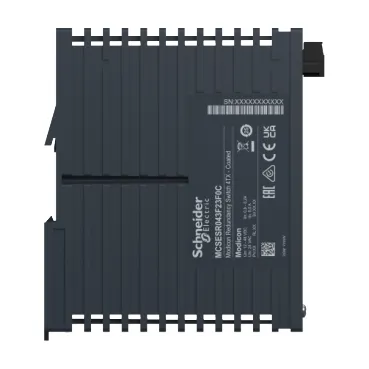

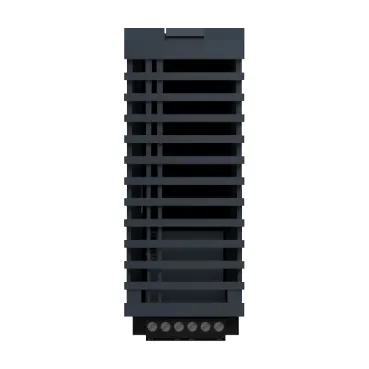

Schneider Electric MCSESR043F23F0C
Redundancy Switch, Modicon Networking, 4 ports for copper, coated
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range of product | Modicon Networking |
|---|---|
| Product or component type | Ethernet TCP/IP managed switch |
| Product specific application | For severe environments |
| Communication port protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP |
| Port Ethernet | 10/100BASE-TX – 4 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | IP-based port security, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging |
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| Ethernet service | Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time | Signal contact, Self test, MAC notification |
| Redundancy | RSTP, Link aggregation, Link backup, MRP, PRP |
| [Us] rated supply voltage | 12…48 V, 24 V |
| Supply voltage limits | 9.6…60 V DC SELV, 18…30 V AC SELV |
| Power consumption in W | 7 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE, CULus, RCM |
| Function available | System information, Alarms (Traps) |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for ring manager, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1000 mA |
| Alarm function | Power supply fault, Data link status, Redundancy ring fault, Switch fault, Temperature threshold, Incorrect configuration, External memory removed |
| Ethernet cabling system | TF switches |
| Width | 46 mm |
| Height | 130 mm |
| Depth | 105 mm |
| Net weight | 0.29 kg |
| Ambient air temperature for operation | -40…60 °C |
| Relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP20 |
| Protective treatment | Conformal coating |
| Directives | 2014/35/EU – low voltage directive, 2014/30/EU – electromagnetic compatibility |
| Standards | UL 61010-2-201, EN/IEC 61131-2 |
| Product certifications | CE, UL, RCM, EAC, UKCA |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.400 cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 24.300 cm |
| Package 1 Weight | 429.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.192 kg |
