Schneider Electric DZ5CA162

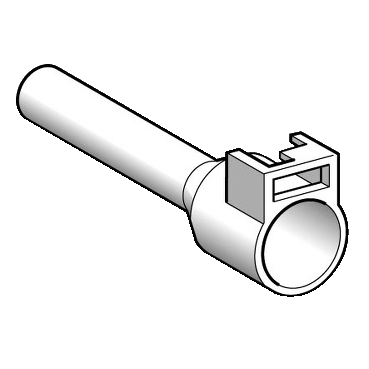

Linergy cable end insulated for clip-in marker. It applied to single conductor with 16 mm² cable cross section. It has white surface treatment. It is medium size for additional marker tag holder. Pack…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Linergy cable end insulated for clip-in marker. It applied to single conductor with 16 mm² cable cross section. It has white surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is compliant with Green Premium (RoHS/REACH).
Specification
| Range of product |
Linergy |
|---|---|
| Product or component type |
Cable end |
| Cable end size |
Medium |
| Standards |
NF C 63-023 |
| Type of packing |
Bag |
| Quantity per set |
Set of 100 |
| Cable cross section |
16 mm² |
| Cable end type |
Single conductor |
| Additional information |
For additional marker tag holder |
| Colour |
White |
| Bezel material |
Halogen-free plastic |
| Tube material |
Copper conforming to ISO 1337 |
| Number of cables |
1 |
| AWG gauge |
AWG 6 |
| Bezel size |
Ø 9.6 mm |
| Tube diameter |
6.2 mm |
| Length |
24 mm |
| Tube length |
12 mm |
| CAD overall depth |
24 mm |
| Net weight |
0.078 kg |
| Ambient air temperature for operation |
-20…105 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.400 cm |
| Package 1 Width |
0.400 cm |
| Package 1 Length |
1.400 cm |
| Package 1 Weight |
0.600 g |
| Unit Type of Package 2 |
BB1 |
| Number of Units in Package 2 |
100 |
| Package 2 Height |
4.000 cm |
| Package 2 Width |
8.000 cm |
| Package 2 Length |
12.000 cm |
| Package 2 Weight |
66.000 g |
| Unit Type of Package 3 |
S03 |
| Number of Units in Package 3 |
6000 |
| Package 3 Height |
30.000 cm |
| Package 3 Width |
30.000 cm |
| Package 3 Length |
40.000 cm |
| Package 3 Weight |
4.523 kg |
| Warranty |
18 months |
